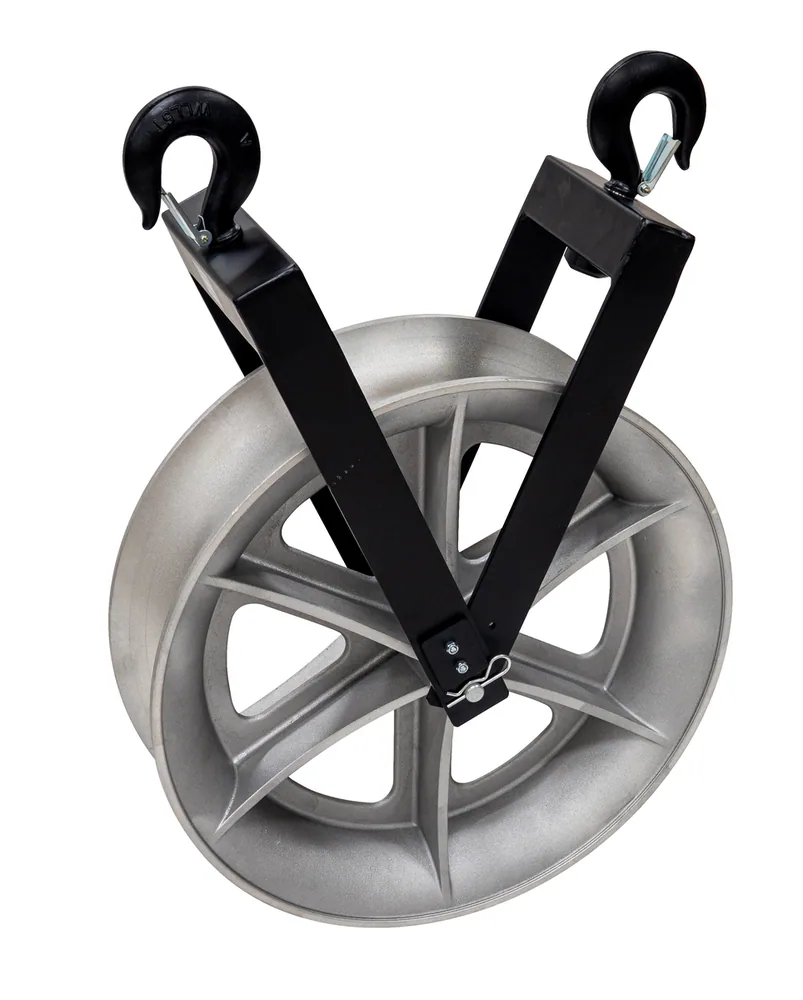

HOOK SHEAVE 24'' TWIN YOKE ALUMINUM SHS24-4
HOOK SHEAVE 24'' TWIN YOKE ALUMINUM SHS24-4
- Southwire #
- 66112940
- Model #
- SHS24-4
- UPC
- 032886727764

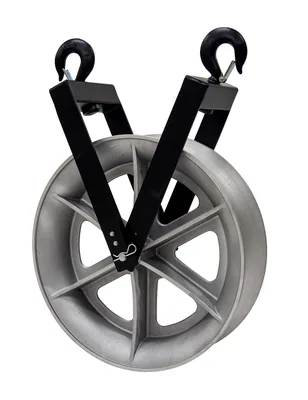

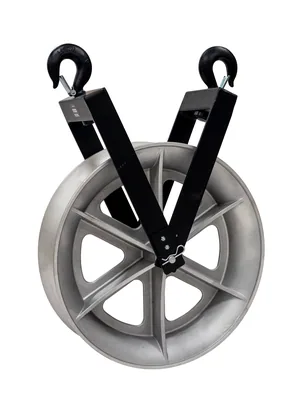

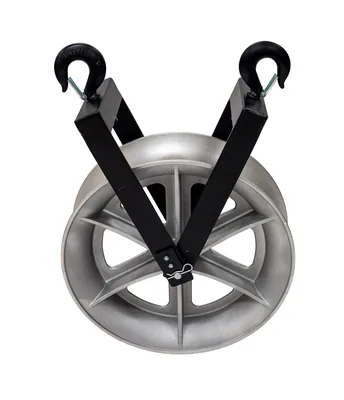

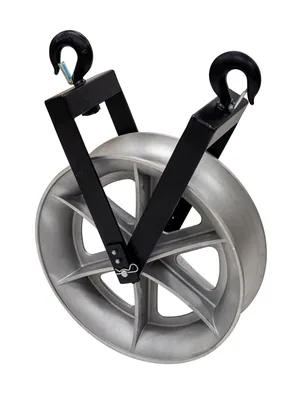

Southwire’s 24" Twin Yoke Aluminum Hook Sheave is built for extra heavy-duty pulls of very large conductors by providing better load distribution, enhanced stability, and smoother rotation than single yoke sheaves. Ideal for substations, power plants, and major infrastructure projects, its large 24” diameter ensures maximum bend radius compliance.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
- Twin Yolk Design for improved load distribution, greater stability, and reduced wear
- Oil-Impregnated Bushings deliver continuous self-lubrication for smooth operation and extended service life
- Axle Support Doublers increase axle arm thickness by 2X, significantly improving load-bearing capacity. Only from Southwire!
- Axle Anti-Rotation Stops prevent axle rotation during sheave operation, ensuring efficient bearing performance and reduced wear.

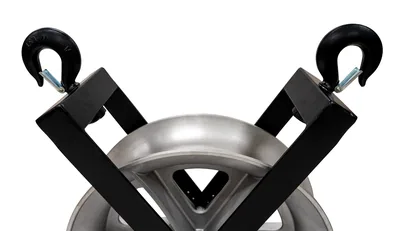

- Welded Box-Style Frame provides superior structural strength and stiffness

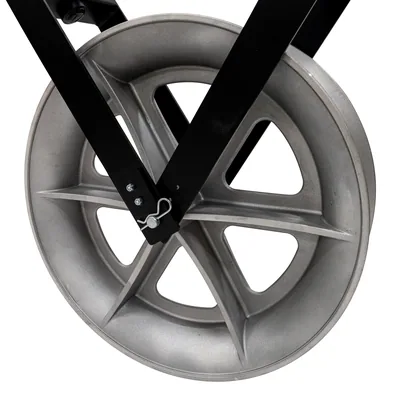

- Heat-treated Cast Aluminum Alloy sheaves provide high strength, low weight, and excellent corrosion resistance

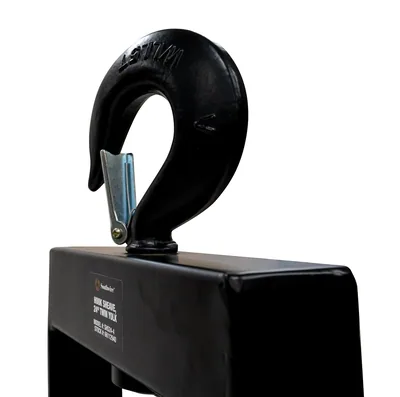

- Forged Steel Swivel Hooks allow smooth load alignment and reduce twisting
- Spring-Loaded Safety Latch with 1.4 in. throat opening for secure attachment
Specifications
| Product Height | 48.25 inch122.56 cm |
|---|---|
| Product Width | 10.4 inch26.42 cm |
| Depth | 24.0 inch60.96 cm |
| Product Weight | 72.0 lbs32.66 kg |
| Rated Capacity | 10,000 LBS10,000 LBS |
