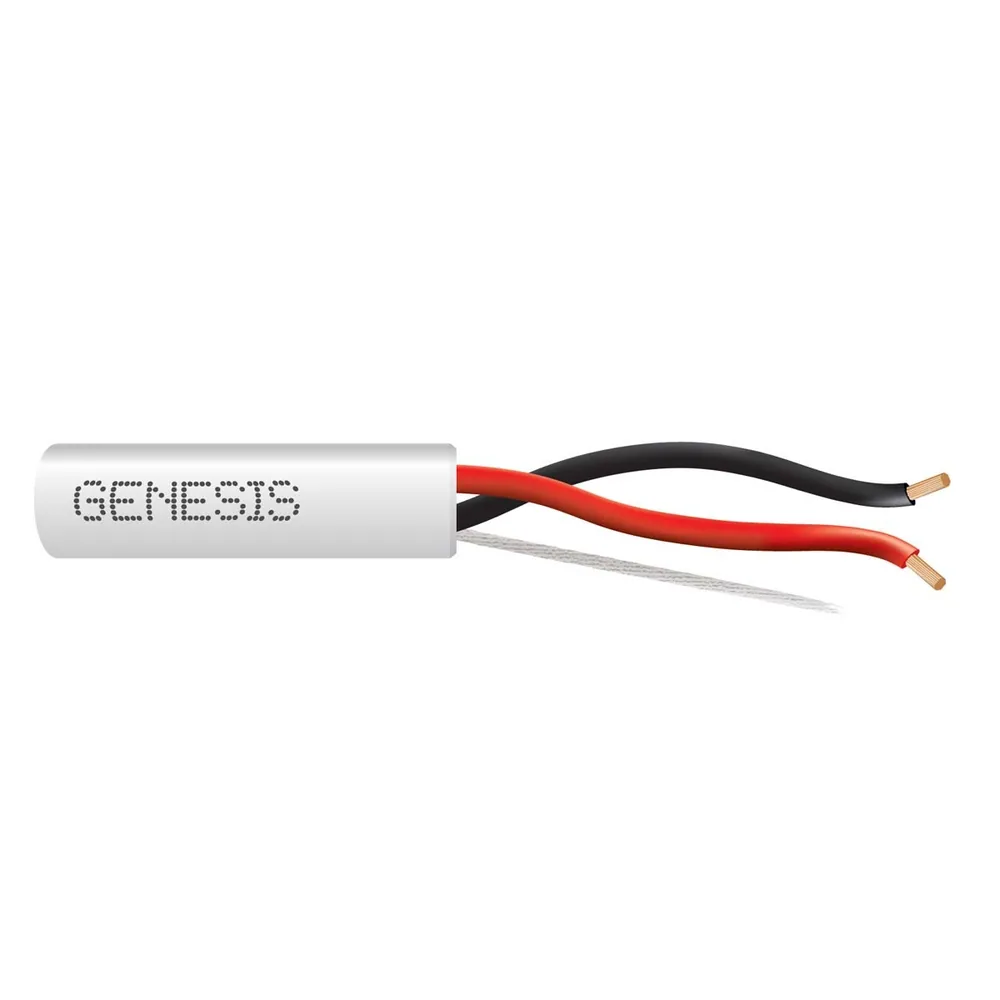

12-65 2/C CU HTS CMR WHITE GEN 500 FT
- Southwire #
- 52545001
Genesis® Home Theater Sound Cables deliver dependable performance and unparalleled value.
Part of the family: Home Theater Sound Cable, Riser
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
Genesis® Riser Rated Home Theater Sound Cable is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- In risers.
- Within buildings in other than air-handling spaces and risers.
- Exposed to sunlight.
Specifications
| Size | 12 AWG12 AWG |
|---|---|
| No. of Conductors | 22 |
| Stranding | StrandedStranded |
| Shielding | UnshieldedUnshielded |
| Nominal Total Weight | 52 lbs/1000'78 kgs/km |
Standards & references
- UL 1666 - Riser Rated
- CSA C22.2 No. 2556 - FT4 Rated
- UL 444 - Communication Cables, Type CMR
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLR
- UL 13 - Power-Limited Circuit Cables, Type CL3R
- Sunlight Resistant Rated
- REACH/RoHS Compliant
