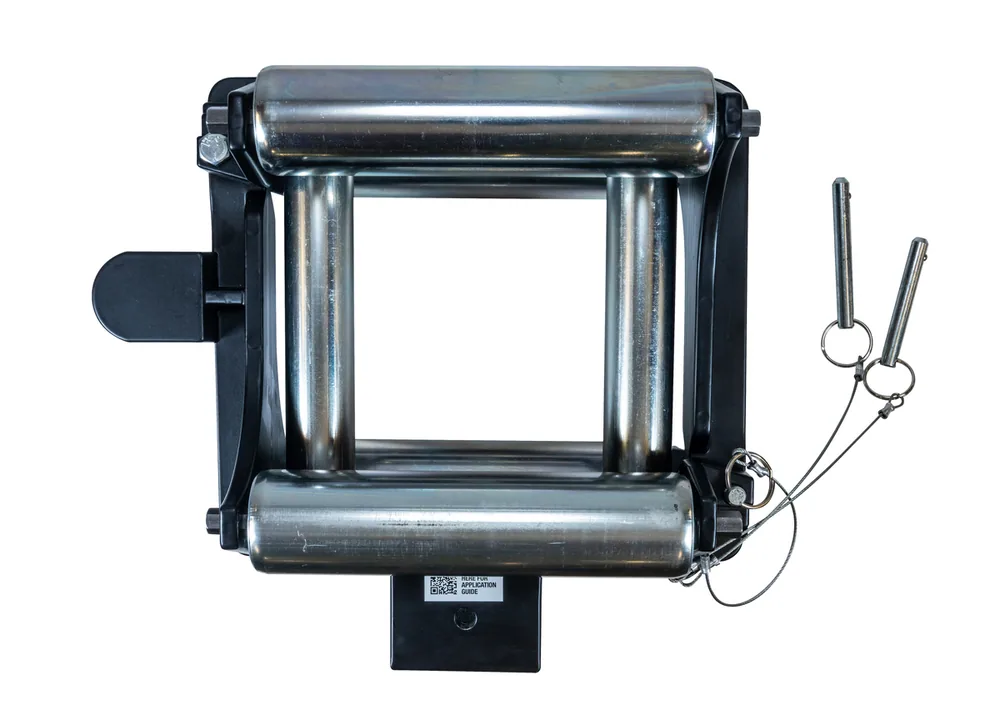

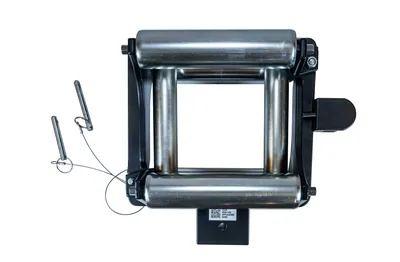

HB1A-9 UNIVERSAL SPLIT-BOX ROLLER
- Southwire #
- 65095101
- Model #
- HB1A-9
- UPC
- 032886707971

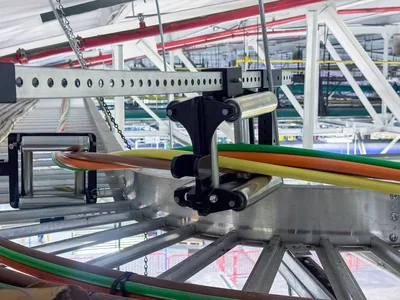

Southwire’s HB1A-9 Universal Split Box Roller – Designed to Be Adaptable, Engineered to Perform. Take on any cable pulling challenge with the HB1A-9 Universal Split Box Roller—Southwire’s most versatile and heavy-duty split-box roller. Designed for ultimate adaptability, it can be mounted above or inside the cable tray using the HB3AX48 crossbar or on the side of the tray using the optional STC Side Tray Clamp. Rotate the HB1A-9 90 degrees to accommodate top, bottom, or side loads. Premium construction featuring a one-piece die-cast aluminum frame, delivering exceptional strength and durability. The 6-roller design keeps cables fully captured for smooth, controlled pulls—perfect for risers, waterfalls, and tight horizontal turns. When the job demands flexibility and performance, the HB1A-9 delivers.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
- A heavy-duty box roller that may be mounted multiple ways on cable tray

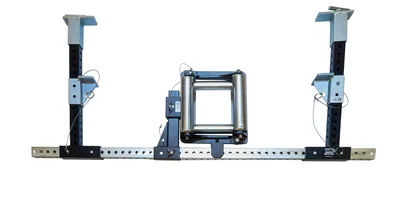

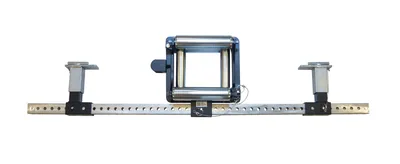

- Flexible mounting above or inside the cable tray using standard HB3AX48 crossbar

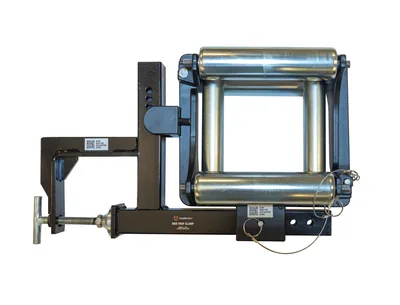

- May be side clamped using the optional STC, Side Tray Clamp
- Mount with heavy-duty force rollers on the top/bottom or side to accommodate top, bottom or side pulling loads
- Premium construction. High-strength, one-piece die cast aluminum frame. Only from Southwire!

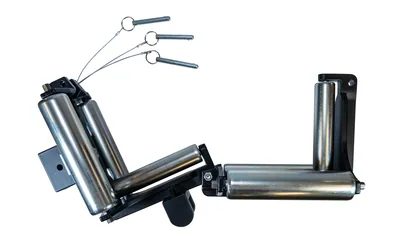

- 6-roller design keeps cables fully captured during the cable pull. Great for risers, waterfalls, and horizontal turns
Specifications
| Product Height | 11.5 inch29.21 cm |
|---|---|
| Product Width | 12.55 inch31.88 cm |
| Product Weight | 9.0 lbs4.08 kg |
| Rated Capacity | Up to 1,000 LBSUp to 1,000 LBS |
