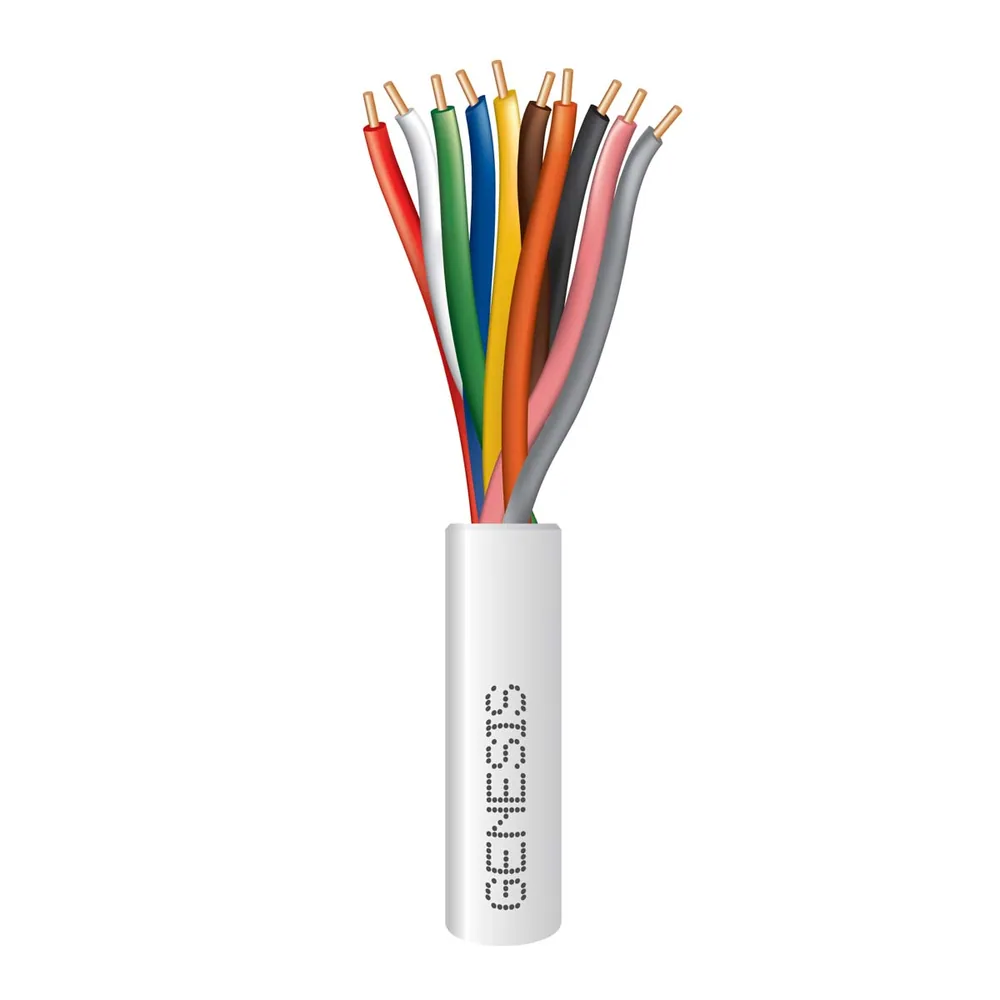

18 SOL 10/C CU T-STAT CL3P NATURAL GEN 250 FT
- Southwire #
- 47680312
Genesis Thermostat Cables guarantee reliable signal transmission between thermostats and heating/cooling systems, keeping today's indoor environments comfortable and energy efficient.
Part of the family: Genesis® Thermostat Cable, Plenum
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
Genesis® Plenum Rated Thermostat Cable is suitable for installation as follows:
- In fabricated ducts as described in NEC 300.22(B).
- In risers.
- Within buildings in other than air-handling spaces and risers.
Specifications
| Size | 18 AWG18 AWG |
|---|---|
| No. of Conductors | 1010 |
| Stranding | SolidSolid |
| Shielding | UnshieldedUnshielded |
| Nominal Total Weight | 63 lbs/1000'93 kgs/km |
Standards & references
- NFPA 262 - Plenum Rated
- UL 13 - Power-Limited Circuit Cables, Type CL2P
- REACH/RoHS Compliant
