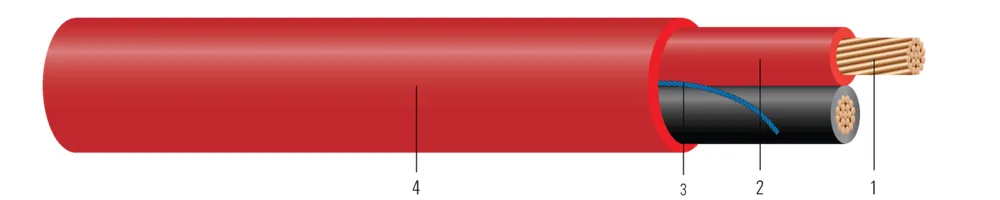

Fire Alarm FPLR Stranded Non-Shielded
- Southwire #
- SPEC13035
300V, 60°C, Multi-Conductor, Unshielded, Stranded Copper as FPLR. Rated CMR/CL3R/FPLR CMG SUN RES FT4. Minimum Operating Temperature -10°C, Maximum Operating Temperature 60°C
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Available sizes & constructions
| Cable Type | Cond. Size | Conductor Number | Cond. Type | Cond. Strands | Diameter Over Conductor (in)(cm) | Color | Insulation Thickness (mils)(mm) | Jacket Thickness (mils)(mm) | Approx. OD (inches)(cm) | Copper Weight (lbs/1000')(kgs/km) | Approx. Weight (lbs/1000')(kgs/km) | Shield Type | Application | DC Resistance at 25C (ohms/1000')(ohms/km) | AC Resistance at 75C (ohms/1000')(ohms/km) | Min. Bend Radius (in)(cm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FPLRFPLR | 16 AWG16 AWG | 22 | CUCU | 77 | 0.0560.14 | BK,RDBK,RD | 100.25 | 150.38 | 0.1840.47 | 1624 | 2334 | nonenone | 4.1816.22 | 5.0377.50 | 0.71.78 | ||
| FPLRFPLR | 14 AWG14 AWG | 22 | CUCU | 77 | 0.0700.18 | BK,RDBK,RD | 100.25 | 150.38 | 0.2180.55 | 2537 | 3552 | nonenone | 2.6313.92 | 3.1704.72 | 0.82.03 | ||
| FPLRFPLR | 12 AWG12 AWG | 22 | CUCU | 1919 | 0.0880.22 | BK,RDBK,RD | 100.25 | 150.38 | 0.2660.68 | 4060 | 5277 | nonenone | Fire AlarmFire Alarm | 1.6622.47 | 2.0022.98 | 1.02.54 |
Application & features
Fire protective signaling circuits. Also for smoke detectors, voice communications, audio control and initiating circuits. Article 760 of the NEC. Minimum Operating Temperature -10°C, Maximum Operating Temperature 60°C
Standards & references
- UL 1424 Cables for Power-Limited Fire-Alarm Circuits
- UL 1424 Listed FPLR
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- NFPA 70 NFPA 101, NFPA 130, and NFPA 502
- UL 13 Power-Limited Circuit Cables
- UL 444 Communications Cables (22 AWG - 16 AWG)
- RoHS-2 (European Directive 2011/65/EU)
