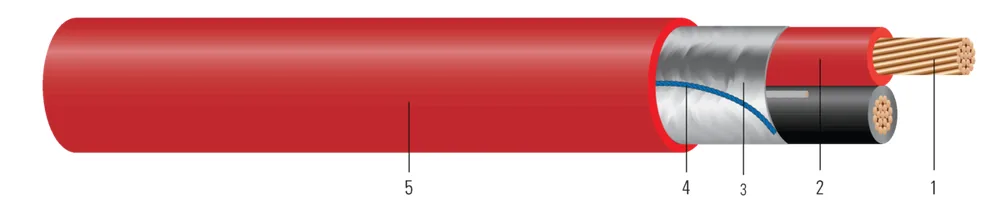

14-19 CU 2/C OAS CL3P/FPLP PVC-LS RED 1000 FT
- Southwire #
- G60121-1A
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
Fire protective signaling circuits. Also for smoke detectors, voice communications, audio control and initiating circuits. Article 760 of the NEC. For use in plenum spaces. Minimum Operating Temperature 0°C, Maximum Temperature 75°C
Specifications
| Cable Type | FPLPFPLP |
|---|---|
| Cond. Size | 14 AWG14 AWG |
| Conductor Number | 22 |
| Cond. Type | CuCu |
| Cond. Strands | 77 |
| Diameter Over Conductor | 0.070 inch0.18 cm |
| Insulation Thickness | 10 mils0.25 mm |
| Jacket Thickness | 15 mils0.38 mm |
| Approx. OD | 0.206 inch0.52 cm |
| Copper Weight | 25 lbs/1000'37 kgs/km |
| Approx. Weight | 25 lbs/1000'37 kgs/km |
| DC Resistance at 25C | 2.631 ohms/1000'3.92 ohms/km |
| AC Resistance at 75C | 3.170 ohms/1000'4.72 ohms/km |
| Inductive Reactance | 0.058 ohms/1000'0.09 ohms/km |
| Min. Bend Radius | 1.2 inch3.05 cm |
| Allowable Ampacity Raceway 75C | 2020 |
| Allowable Ampacity Raceway 90C | 2525 |
Standards & references
- UL 1424 Cables for Power-Limited Fire-Alarm Circuits
- UL 1424 Listed FPLP
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- NFPA 70 NFPA 101, NFPA 130, and NFPA 502
- UL 13 Power-Limited Circuit Cables
- UL 444 Communications Cables (22 AWG - 16 AWG)
- RoHS-2 (European Directive 2011/65/EU)
