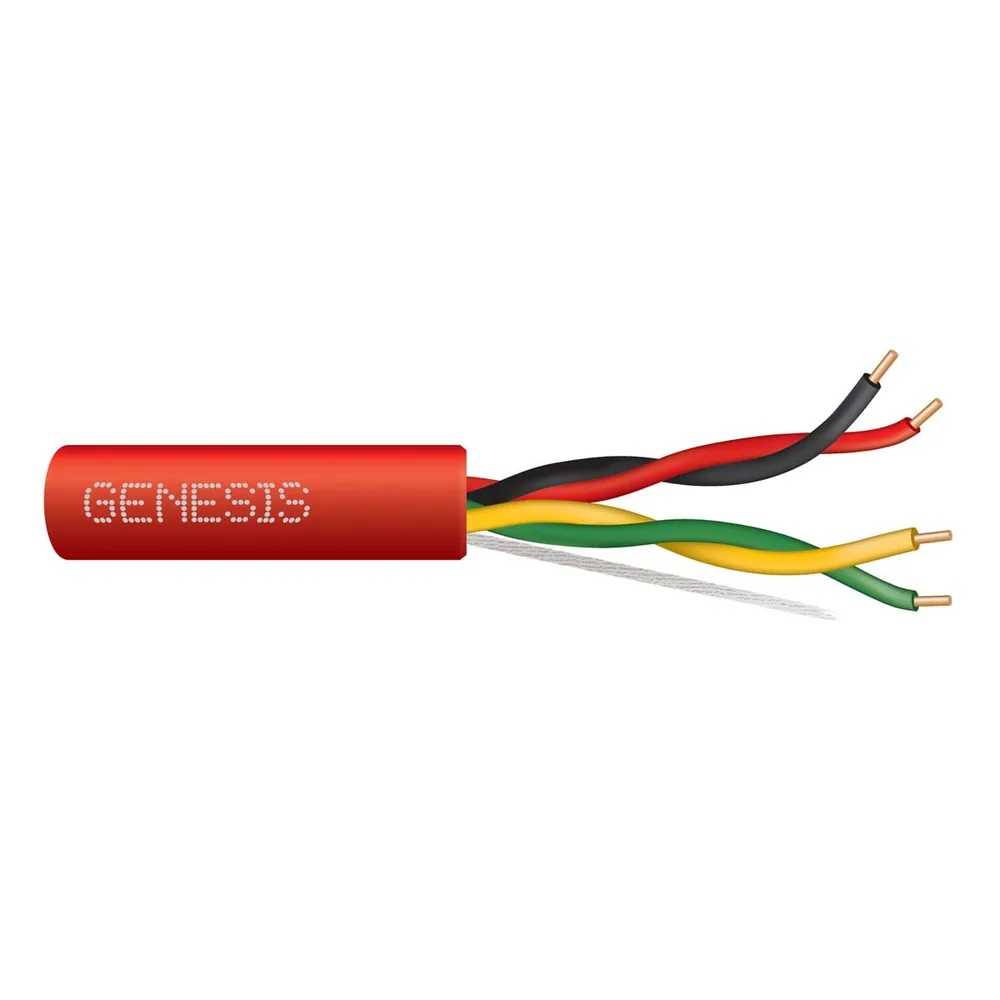

14/2 PAIR SOL CU N/S FPLP NYC PVDF RED GEN 1000 FT
- Southwire #
- 55061004
Genesis® Fire Alarm Cable ensures uninterrupted fire protection. Built to exceed the demands of rigorous New York City fire safety code. UL listed and Made in the USA.
Part of the family: Fire Alarm Cable, NYC Certified
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
Genesis® NYC Certified Rated Fire Alarm Cable is suitable for installation as follows:
- In Fire Alarm Systems that require NYC Certified Fire Alarm Cable.
- In fabricated ducts as described in NEC 300.22(B).
- In other spaces used for environmental air as described in NEC 300.22(C).
- In risers.
- Within buildings in other than air-handling spaces and risers.
Specifications
| Size | 14 AWG14 AWG |
|---|---|
| Number of Pairs | 22 |
| Stranding | SolidSolid |
| Shielding | UnshieldedUnshielded |
| Nom. OD | 257 mils6.54 mm |
| Nominal Total Weight | 77 lbs/1000'115 kgs/km |
Standards & references
- Classified NYC Certified Fire Alarm Cable
- NFPA 262 - Plenum Rated
- UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
- REACH/RoHS Compliant
