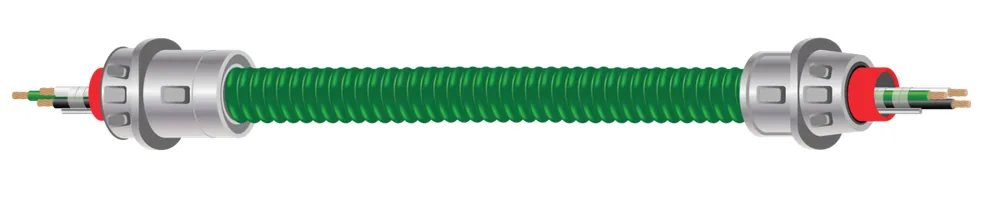

EZ-QUICK™ MCHC Health Care Facility Modular Cable Assembly

Southwire #: SPEC60444

14 AWG through 10 AWG THHN/THWN Insulated Singles. Green Insulated Ground. UL Listed. 600 Volts. Rated VW-1. Lightweight Aluminum Interlocked Armor. Includes UL Listed Fittings and Prepared Cable Ends.

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Part numbers in this family (6) ↓

📄 Spec sheet (PDF)

Available sizes & constructions

Cond. Size	Conductor Number	Color
12 AWG12 AWG	22	BK/WEBK/WE	58732801
12 AWG12 AWG	44	BK/WE/RD/BEBK/WE/RD/BE	58733001
12 AWG12 AWG	22	58732801
12 AWG12 AWG	44	58733001
1212	22	StrandedStranded	BK, WEBK, WE	33
1212	22	StrandedStranded	BK, WEBK, WE	55
1212	22	StrandedStranded	BK, WEBK, WE	1010
1212	22	StrandedStranded	BK, WEBK, WE	11.611.6
1212	44	StrandedStranded	BK, WE, RD, BEBK, WE, RD, BE	55
1212	44	StrandedStranded	BK, WE, RD, BEBK, WE, RD, BE	55

Part numbers in this family (6)

By size:

Southwire #	Description	Construction	Conductor Color	Packaging
12 AWG · 2 conductors (4)
58732801	12-2 STR CU THHN MCAP HCF EZ QUICK WHIP BLACK/WHITE/GREEN AIA 62" 10" LEADS 26 EA	12 AWG 2C SOL	BLK/WHT/GRN	26 EA CARTON
59546802	12-2 STR CU THHN MCAP HCF EZ QUICK WHIP MC BLACK/WHITE/GREEN AIA 120" 10" LEADS 16 EA	12 AWG 2C SOL	BLK/WHT/GRN	16 EA CARTON
59546902	12-2 STR CU THHN MCAP HCF EZ QUICK WHIP MC BLACK/WHITE/GREEN AIA 140" 10" LEADS 14 EA	12 AWG 2C SOL	BLK/WHT/GRN	14 EA CARTON
59547001	12-2 STR CU THHN MCAP HCF EZ QUICK WHIP MC BLACK/WHITE/GREEN AIA 3' 10"LEADS 40 EA	12 AWG 2C SOL	BLK/WHT/GRN	40 EA CARTON
12 AWG · 4 conductors (2)
58733001	12-4 STR CU THHN MCAP HCF EZ QUICK WHIP BLACK/WHITE/RED/BLUE/GREEN 62" 10.50"Leads 22 EA	12 AWG 4C SOL	BLK/WHT/RED/BLU/GRN	22 EA CARTON
59547101	12-4 STR CU THHN MCAP HCF EZ QUICK WHIP MC BLACK/WHITE/RED/BLUE/GREEN AIA 62"10.5&27.5 LEADS 20 EA	12 AWG 4C SOL	BLK/WHT/RED/BLU/GRN	20 EA CARTON

Application & features

Southwire EZ QUICK™ Health Care Facility Modular Cable Assemblies are suitable for use as follows:

Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.

Fished or embedded in plaster.

Concealed or exposed installations.

Environmental air-handling spaces per NEC 300.22 (C).

Places of Assembly per NEC 518.4 and theaters per NEC 520.5.

Installation in cable tray and approved raceways.

Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2)

Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.

Southwire EZ QUICK™ Health Care Facility Modular Cable Assemblies - meets or exceeds the following requirements:

UL Online Product Guide Info - Metal-Clad Cable (PJAZ) ( www.ul.com )

Federal Specification A-A59544 (formerly J-C-30B)

NFPA 70 (National Electrical Code), Article 330

Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems

REACH/RoHS-2 (Chemical Limit) Compliant

Southwire EZ QUICK™ Health Care Facility Modular Cable Assemblies Features:

Reduces installation costs up to 50% over pipe and wire.

Lightweight aluminum armor--as much as 45% lighter than steel MC Cable.

Better grounding performance than Type AC

Pre-cut lengths eliminate on-site preparation and save installation and clean up time.

Pre-stripped conductors increase jobsite safety

UL Listed snap-in fittings applied to each end

UL Classified 1, 2, and 3 hour Through Penetration Firestop Systems: W-J-3037, W-L-3110, W-L-3113, W-L-3117, W-L-3120, W-L-3121, W-L-3160, C-AJ-3115, C-AJ-3140, C-AJ-3142, C-AJ-3145, C-AJ-3173, C-AJ-3202, C-AJ-4065, C-AJ-4066, F-C-3038.

Cable reverse wound on reel for ease of pulling and installation. When pulling from coils, pull from inside to ensure ease of installation.

Anti-short bushings are not required for use with MC cable per the NEC and UL

Standards & references

ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
UL 83 Thermoplastic Insulated Wires and Cables
UL 1569 Metal-Clad Cables
UL 1479 Standard for Safety Fire Tests of Penetration Firestops
UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
Buy American: Compliant with Buy American Requirements, found in 49 U.S.C. § 5323(j); specify “Made in the USA Only!” when ordering to ensure your project receives American made products.
