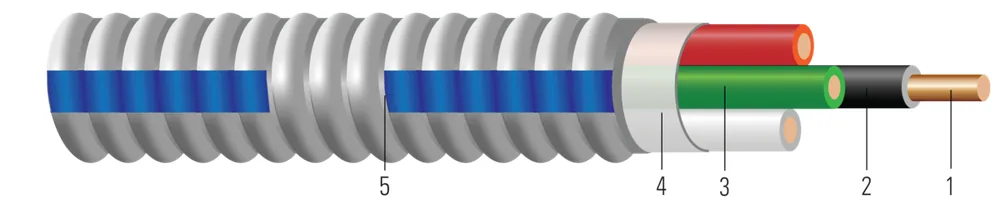

Duraclad® Type MC THHN/THWN Circuit Size Copper Conductor 120/208V Colors Dashed-Blue Armor
- Southwire #
- SPEC60268
Copper THHN/THWN Insulated Singles. Green Insulated Copper Grounding Conductor. UL Listed 600 Volts. Rated VW-1. Lightweight Steel Dashed-Blue Interlocked Armor.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Part numbers in this family (14) ↓Available sizes & constructions
| Cond. Size | Conductor Number | Color | Diameter Over Conductor (in)(cm) | Cond. Strands | Insulation Thickness (mils)(mm) | Ground Size | Diameter Over Armor (in)(cm) | Approx. Weight (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|---|---|---|---|
| 12 AWG12 AWG | 22 | BK,WEBK,WE | 0.0800.20 | SolidSolid | 200.51 | 1x121x12 | 0.4831.23 | 151225 | 57109701 |
| 12 AWG12 AWG | 33 | BK,RD,WEBK,RD,WE | 0.0800.20 | SolidSolid | 200.51 | 1x121x12 | 0.5141.31 | 181269 | 57111101 |
| 12 AWG12 AWG | 44 | BK,RD,BE,WEBK,RD,BE,WE | 0.0800.20 | SolidSolid | 200.51 | 1x121x12 | 0.5491.39 | 213317 | 57114801 |
| 10 AWG10 AWG | 22 | BK,WEBK,WE | 0.1010.26 | SolidSolid | 250.64 | 1x101x10 | 0.5501.40 | 204304 | 57115001 |
| 10 AWG10 AWG | 33 | BK,RD,WEBK,RD,WE | 0.1010.26 | SolidSolid | 250.64 | 1x101x10 | 0.5891.50 | 251374 | 57115501 |
| 10 AWG10 AWG | 44 | BK,RD,BE,WEBK,RD,BE,WE | 0.1010.26 | SolidSolid | 250.64 | 1x101x10 | 0.6331.61 | 296440 | 57116001 |
| 12 AWG12 AWG | 22 | 3.48.64 | 1.6622.47 | 2.0022.98 | 0.0540.08 | 2525 | 3030 | 57109701 | |
| 12 AWG12 AWG | 33 | 3.69.14 | 1.6622.47 | 2.0022.98 | 0.0540.08 | 2525 | 3030 | 57111101 | |
| 12 AWG12 AWG | 44 | 3.89.65 | 1.6622.47 | 2.0022.98 | 0.0540.08 | 2020 | 2424 | 57114801 | |
| 10 AWG10 AWG | 22 | 3.99.91 | 1.0401.55 | 1.2531.86 | 0.0500.07 | 3535 | 4040 | 57115001 | |
| 10 AWG10 AWG | 33 | 4.110.41 | 1.0401.55 | 1.2531.86 | 0.0500.07 | 3535 | 4040 | 57115501 | |
| 10 AWG10 AWG | 44 | 4.411.18 | 1.0401.55 | 1.2531.86 | 0.0500.07 | 2828 | 3232 | 57116001 |
Part numbers in this family (14)
| Southwire # | Description | Construction | Conductor Color | Packaging | |
|---|---|---|---|---|---|
| 12 AWG · 2 conductors (4) | |||||
| 57109701 | 12-2 SOL CU THHN BLACK/WHITE/GREEN GSIA MC 600V BLUE 250 FT | 12 AWG 2C SOL | BLK/WHT/GRN | 250 FT COIL | |
| 57109702 | 12-2 SOL CU THHN BLACK/WHITE/GREEN GSIA MC 600V BLUE 1000 FT | 12 AWG 2C SOL | BLK/WHT/GRN | 1000 FT REEL | |
| 57110601 | 12-2 SOL CU THHN RED/WHITE/GREEN GSIA MC 600V BLUE 250 FT | 12 AWG 2C SOL | RED/WHT/GRN | 250 FT COIL | |
| 57110602 | 12-2 SOL CU THHN RED/WHITE/GREEN GSIA MC 600V BLUE 1000 FT | 12 AWG 2C SOL | RED/WHT/GRN | 1000 FT REEL | |
| 12 AWG · 3 conductors (2) | |||||
| 57111101 | 12-3 SOL CU THHN BLACK/WHITE/RED/GREEN GSIA MC 600V BLUE 250 FT | 12 AWG 3C SOL | BLK/WHT/RED/GRN | 250 FT COIL | |
| 57111102 | 12-3 SOL CU THHN BLACK/WHITE/RED/GREEN GSIA MC 600V BLUE 1000 FT | 12 AWG 3C SOL | BLK/WHT/RED/GRN | 1000 FT REEL | |
| 12 AWG · 4 conductors (2) | |||||
| 57114801 | 12-4 SOL CU THHN BLACK/WHITE/RED/BLUE/GREEN GSIA MC 600V BLUE 250 FT | 12 AWG 4C SOL | BLK/WHT/RED/BLU/GRN | 250 FT COIL | |
| 57114802 | 12-4 SOL CU THHN BLACK/WHITE/RED/BLUE/GREEN GSIA MC 600V BLUE 1000 FT | 12 AWG 4C SOL | BLK/WHT/RED/BLU/GRN | 1000 FT REEL | |
| 10 AWG · 2 conductors (3) | |||||
| 57115001 | 10-2 SOL CU THHN BLACK/WHITE/GREEN GSIA MC 600V BLUE 250 FT | 10 AWG 2C SOL | BLK/WHT/GRN | 250 FT COIL | |
| 57115002 | 10-2 SOL CU THHN BLACK/WHITE/GREEN GSIA MC 600V BLUE 1000 FT | 10 AWG 2C SOL | BLK/WHT/GRN | 1000 FT REEL | |
| 57115302 | 10-2 SOL CU THHN RED/WHITE/GREEN GSIA MC 600V BLUE 1000 FT | 10 AWG 2C SOL | RED/WHT/GRN | 1000 FT REEL | |
| 10 AWG · 3 conductors (2) | |||||
| 57115501 | 10-3 SOL CU THHN BLACK/WHITE/RED/GREEN GSIA MC 600V BLUE 250 FT | 10 AWG 3C SOL | BLK/WHT/RED/GRN | 250 FT COIL | |
| 57115502 | 10-3 SOL CU THHN BLACK/WHITE/RED/GREEN GSIA MC 600V BLUE 1000 FT | 10 AWG 3C SOL | BLK/WHT/RED/GRN | 1000 FT REEL | |
| 10 AWG · 4 conductors (1) | |||||
| 57116001 | 10-4 SOL CU THHN BLACK/WHITE/RED/BLUE/GREEN GSIA MC 600V BLUE 250 FT | 10 AWG 4C SOL | BLK/WHT/RED/BLU/GRN | 250 FT COIL | |
Application & features
Southwire Armorlite® Type MC Cable is suitable for use as follows:
- Branch, feeder and service power distribution in commercial, industrial, institutional, and multi- residential buildings.
- Fished or embedded in plaster.
- Concealed or exposed installations.
- Environmental air-handling spaces per NEC 300.22 (C).
- Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
- Installation in cable tray and approved raceways.
- Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2)
- Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
- Binder tape with print legend wrapped around assembly.
- Type THHN/THWN rated 90ºC Dry.
Southwire Armorlite® Type MC Cable - meets or exceeds the following requirements:
- UL Online Product Guide Info - Metal-Clad Cable (PJAZ) ( www.ul.com )
- Federal Specification A-A59544 (formerly J-C-30B)
- NFPA 70 (National Electrical Code), Article 330
- Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems
Standards & references
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 83 Thermoplastic Insulated Wires and Cables
- UL 1569 Metal-Clad Cables
- UL 1479 Standard for Safety Fire Tests of Penetration Firestops
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
- Buy American: Compliant with Buy American Requirements, found in 49 U.S.C. § 5323(j); specify “Made in the USA Only!” when ordering to ensure your project receives American made products.
