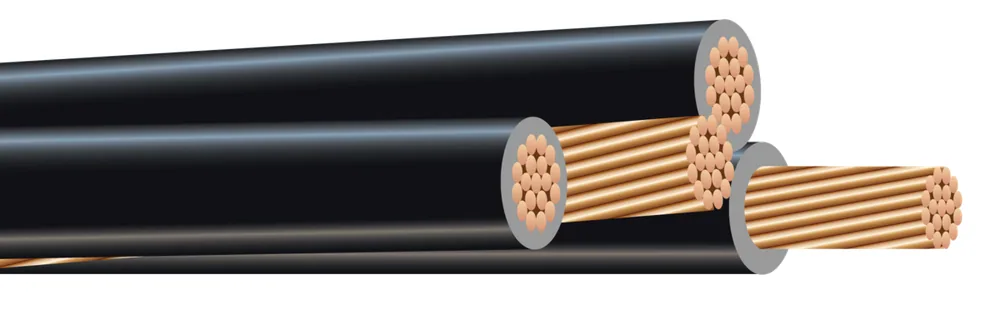

3-7 CU 600VOH XLPE QX/3-7 CU NEUTRAL 25.42 IN. SPL LAY/PHASE ID 500 FT
- Southwire #
- 27916625
Copper Conductors With Crosslinked Polyethylene Insulation.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 90°C for crosslinked polyethylene (XLP) insulated conductors.
Specifications
| No. of Conductors | 44 |
|---|---|
| Size | 3 AWG3 AWG |
| No. of Strands | 77 |
| Insulation Thickness | 45 mils1.14 mm |
| Nom. OD | 825 mils20.97 mm |
| Nominal Total Weight | 711 lbs/1000'1059 kgs/km |
Standards & references
- ASTM B1 Hard-Drawn Copper
- ASTM B3 Standard Specification for Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ICEA S-76-474 Standard for Neutral-Supported Power Cable Assemblies with Weather-Resistant Extruded Insulation Rated 600V
