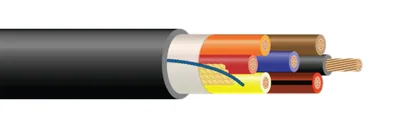

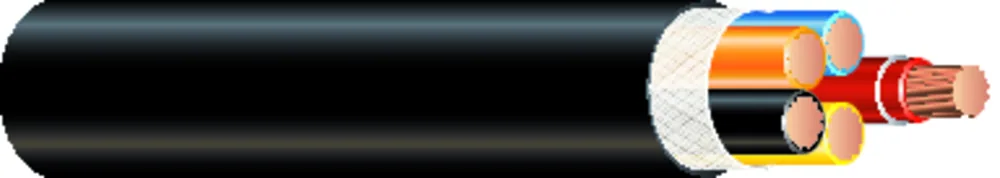

CU FRXLPE LSZH-TP CONTROL CABLE
- Southwire #
- SUBSTN31
Control Cable 600 Volt Copper Conductors, Flame Retardant Cross Linked Polyethylene (FR-XLPE) Insulation SOLONON® Low Smoke Zero Halogen (LSZH) Jacket, Control Cable Conductor Identification Method 1 Table 2. Silicone Free
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Part numbers in this family (5) ↓Available sizes & constructions
| No. of Conductors | Size (AWG or kcmil)(mm2) | No. of Strands | Insulation Thickness (mils)(mm) | Nom. OD (mils)(mm) | Nominal Total Weight (lbs/1000')(kgs/km) | |
|---|---|---|---|---|---|---|
| 77 | 14 AWG14 AWG | 77 | 300.76 | 50712.90 | 180268 | 66099101 |
| 22 | 10 AWG10 AWG | 77 | 300.76 | 45211.49 | 121181 | 62415201 |
| 44 | 10 AWG10 AWG | 77 | 300.76 | 56214.27 | 234348 | 66098801 |
| 99 | 10 AWG10 AWG | 77 | 300.76 | 76919.54 | 464691 | 62552401 |
| 1212 | 10 AWG10 AWG | 77 | 300.76 | 90823.08 | 639951 | 62622501 |
Part numbers in this family (5)
| Southwire # | Description | Construction | Conductor Color | Packaging | |
|---|---|---|---|---|---|
| 66099101 | 14-7 7/C CU XHHW E2 RIP CORD BLACK SOLONON-TP JKT 600V SUBSTATION WIRE | 14 AWG 7C 7S | BLACK/RED/BLUE/ORANGE/YELLOW/BROWN/RED-BLACK STRIPE | 5000 FT REEL | |
| 62415201 | 10-7 2/C CU FR-XLPE E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE | 10 AWG 2C 7 STR | BLACK/WHITE | 1000 FT REEL | |
| 66098801 | 10-7 4/C CU XHHW E2 RIP CORD BLACK SOLONON-TP JKT 600V SUBSTATION WIRE | 10 AWG 4C 7 STR | BLACK/RED/BLUE/ORANGE | 1000 FT REEL | |
| 62552401 | 10-7 9/C CU FR-XLPE E1 RIP CORD BLACK SOLONON-TP JKT 600V SUBSTATION WIRE | 10 AWG 9C 7S | BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK STRIPE/RED-BLACK STRIPE/GREEN-BLACK STRIPE | 2000 FT REEL | |
| 62622501 | 10-7 12/C CU FR-XLPE RIP CORD BLACK SOLONON-TP JKT 600V SUBSTATION WIRE | 10 AWG 12C 7S | BLACK/WHITE/RED/GREEN/BLUE/ORANGE/WHITE-BLACK STRIPE/RED-BLACK STRIPE/GREEN-BLACK STRIPE/ORANGE-BLACK STRIPE/BLUE-BLACK STRIPE/BLACK-WHITE STRIPE | 2000 FT REEL |
Application & features
Southwire’s 600 Volt control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. Only UL rated constructions can be used in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Only UL rated constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10.
Standards & references
- ASTM B3 Standard Specification for Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- UL 44 Thermoset-Insulated Wires and Cables
- UL 1277 Electrical Power and Control Tray Cables
- UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
- ICEA S-58-679 Control Cable Conductor Identification Method 1 Table 2
- ICEA S-73-532 Standard for Control, Thermocouple Extension and Instrumentation Cables
- ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- IEEE 1202 FT4 Vertical Tray Flame Test (70,000 Btu/hr) and ICEA T-29-520 - (210,000 Btu/hr)
- VW-1 (Vertical-Wire) Flame Test
