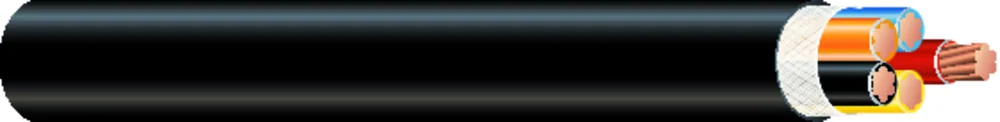

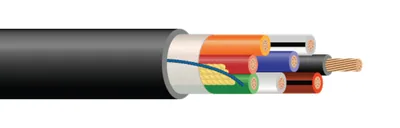

CU FRXLPE CPE-TP CONTROL CABLE

Southwire #: SUBSTN26

Control Cable 600 Volt Copper Conductors, Flame Retardant Cross Linked Polyethylene (FR-XLPE) Insulation Chlorinated Polyethylene (CPE) Jacket, Control Cable Conductor Identification Method 1 Table 2. Silicone Free

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Part numbers in this family (19) ↓

📄 Spec sheet (PDF)

Available sizes & constructions

No. of Conductors	Size (AWG or kcmil)(mm2)	No. of Strands	Insulation Thickness (mils)(mm)	Nom. OD (mils)(mm)	Nominal Total Weight (lbs/1000')(kgs/km)
1212	14 AWG14 AWG	77	300.76	69217.58	304452	61993001
22	12 AWG12 AWG	77	300.76	40810.38	89133	60666801
99	12 AWG12 AWG	77	300.76	68217.34	323481	61993901
1212	12 AWG12 AWG	77	300.76	76219.37	416620	61841401
22	10 AWG10 AWG	77	300.76	45211.49	121181	60429001
33	10 AWG10 AWG	77	300.76	47612.10	171255	61836002
44	10 AWG10 AWG	77	300.76	55714.16	226336	61994501
88	10 AWG10 AWG	77	300.76	71618.19	413614	61949801
1212	10 AWG10 AWG	77	300.76	90823.08	627933	60661001

Part numbers in this family (19)

By size:

Southwire #	Description	Construction	Conductor Color	Packaging
14 AWG · 12 conductors (1)
61993001	14-7 12/C CU FR-XLPE E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	14 AWG 12C 7S	BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK STRIPE/RED-BLACK STRIPE/GREEN-BLACK STRIPE/ORANGE-BLACK STRIPE/BLUE-BLACK STRIPE/BLACK-WHITE STRIPE	2500 FT REEL
12 AWG · 2 conductors (2)
60666801	12-7 2/C CU XHHW E2 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	12 AWG 2C 7 STR	BLACK/RED	4000 FT REEL
60667201	12-7 2/C CU XHHW E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	12 AWG 2C 7 STR	BLACK/WHITE	4000 FT REEL
12 AWG · 9 conductors (1)
61993901	12-7 9/C CU FR-XLPE E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	12 AWG 9C 7S	BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK STRIPE/RED-BLACK STRIPE/GREEN-BLACK STRIPE	2500 FT REEL
12 AWG · 12 conductors (3)
66221101	12-7 12/C CU FR-XLPE E2 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	12 AWG 12C 7S	BLACK/RED/BLUE/ORANGE/YELLOW/BROWN/RED-BLACK STRIPE/BLUE-BLACK STRIPE/ORANGE-BLACK STRIPE/YELLOW-BLACK STRIPE/BROWN-BLACK STRIPE/BLACK-RED STRIPE	2500 FT REEL
61841401	12-7 12/C CU FR-XLPE E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	12 AWG 12C 7S	BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK STRIPE/RED-BLACK STRIPE/GREEN-BLACK STRIPE/ORANGE-BLACK STRIPE/BLUE-BLACK STRIPE/BLACK-WHITE STRIPE	2500 FT REEL
61841402	12-7 12/C CU FR-XLPE E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	12 AWG 12C 7S	BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK STRIPE/RED-BLACK STRIPE/GREEN-BLACK STRIPE/ORANGE-BLACK STRIPE/BLUE-BLACK STRIPE/BLACK-WHITE STRIPE	5000 FT REEL
10 AWG · 2 conductors (4)
60429002	10-7 2/C CU XHHW E2 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 2C 7 STR	BLACK/RED	1000 FT REEL
60429001	10-7 2/C CU XHHW E2 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 2C 7 STR	BLACK/RED	2500 FT REEL
60429003	10-7 2/C CU XHHW E2 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 2C 7 STR	BLACK/RED	5000 FT REEL
61994315	10-7 2/C CU FR-XLPE E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 2C 7 STR	BLACK/WHITE	1000 FT REEL
10 AWG · 3 conductors (1)
61836002	10-7 3/C CU XLP E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 3C 7 STR	BLACK/WHITE/RED	2000 FT REEL
10 AWG · 4 conductors (3)
61994502	10-7 4/C CU FR-XLPE E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 4C 7 STR	BLACK/WHITE/RED/GREEN	1000 FT REEL
61994501	10-7 4/C CU FR-XLPE E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 4C 7 STR	BLACK/WHITE/RED/GREEN	2500 FT REEL
61994503	10-7 4/C CU FR-XLPE E1 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 4C 7 STR	BLACK/WHITE/RED/GREEN	5000 FT REEL
10 AWG · 8 conductors (2)
61949802	10-7 8/C CU XHHW E1 RIP CORD BLACK PVC JKT 600V SUBSTATION WIRE	10 AWG 8C 7S	BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK STRIPE/RED-BLACK STRIPE	1000 FT REEL
61949801	10-7 8/C CU XHHW E1 RIP CORD BLACK PVC JKT 600V SUBSTATION WIRE	10 AWG 8C 7S	BLACK/WHITE/RED/GREEN/ORANGE/BLUE/WHITE-BLACK STRIPE/RED-BLACK STRIPE	2500 FT REEL
10 AWG · 12 conductors (2)
60661001	10-7 12/C CU XHHW E2 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 12C 7S	BLACK/RED/BLUE/ORANGE/YELLOW/BROWN/RED-BLACK STRIPE/BLUE-BLACK STRIPE/ORANGE-BLACK STRIPE/YELLOW-BLACK STRIPE/BROWN-BLACK STRIPE/BLACK-RED STRIPE	2500 FT REEL
60661002	10-7 12/C CU XHHW E2 RIP CORD BLACK CPE-TP JKT 600V SUBSTATION WIRE	10 AWG 12C 7S	BLACK/RED/BLUE/ORANGE/YELLOW/BROWN/RED-BLACK STRIPE/BLUE-BLACK STRIPE/ORANGE-BLACK STRIPE/YELLOW-BLACK STRIPE/BROWN-BLACK STRIPE/BLACK-RED STRIPE	5000 FT REEL

Application & features

Southwire’s 600 Volt control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. UL rated constructions can be used in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Only UL rated constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10.

Standards & references

ASTM B3 Standard Specification for Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
UL 1277 Electrical Power and Control Tray Cables
UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
ICEA S-58-679 Control Cable Conductor Identification Method 1 Table 2
ICEA S-73-532 Standard for Control, Thermocouple Extension and Instrumentation Cables
ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
IEEE 1202 FT4 Vertical Tray Flame Test (70,000 Btu/hr) and ICEA T-29-520 - (210,000 Btu/hr)
VW-1 (Vertical-Wire) Flame Test
