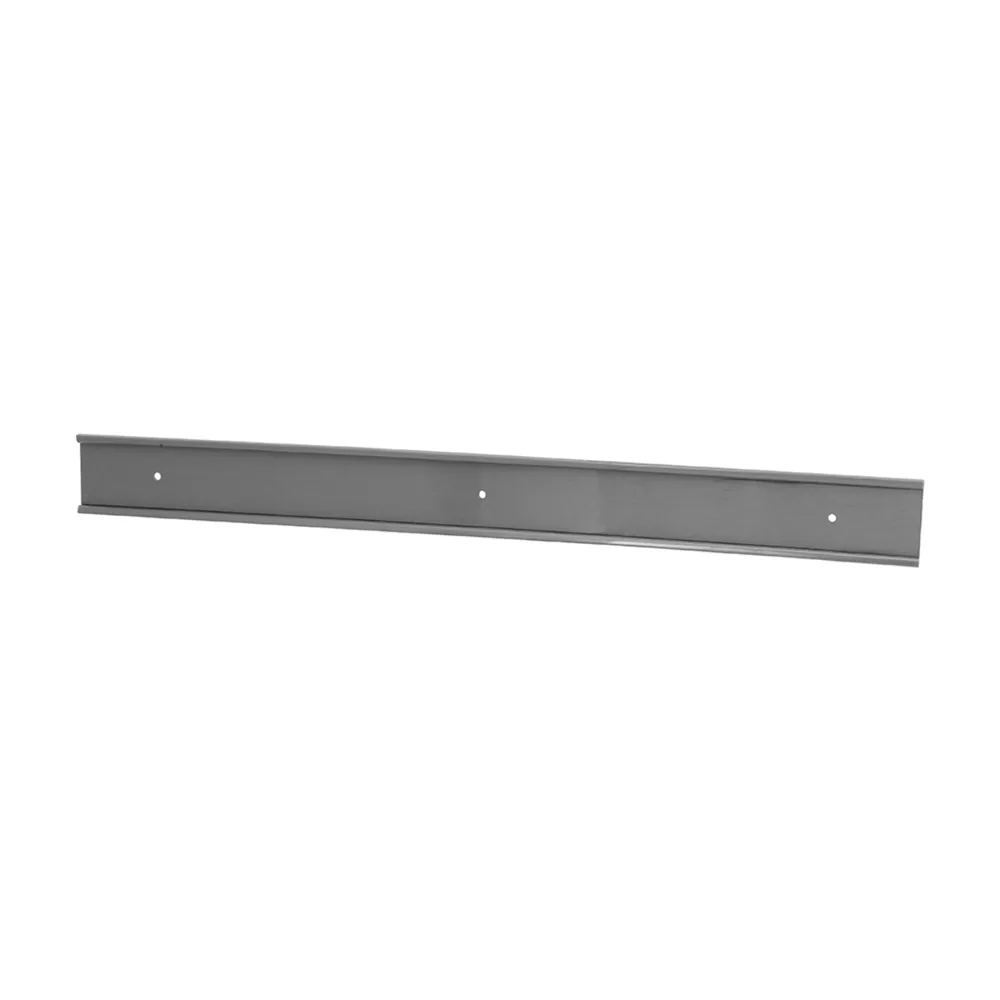

Clip-It 20" Channel Strip
Clip-It 20" Channel Strip
- Southwire #
- MRN236
- UPC
- 784297017902
Channel Strip mounts beween 2 studs. Used with snap-in CLIP-IT Channel Clip to position cables into place
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
- 20" length - can be field modifed for shorter
- With only 3 scews, can support up to 20 cables between studs
- Fits MC/AC cable 12/2 thru 10/3. Fits 1/2" thru 1" PVC, Rigid and EMT conduit
- Plenum rated
- Suitable for indoor use only
- No load rating
- Max. operating temperature rated at 80 deg. C
- Zinc plated steel
Specifications
| Product Height | 1.8 inch4.57 cm |
|---|---|
| Product Width | 2.2 inch5.59 cm |
| Product Weight | 2.0 lbs0.91 kg |
| Material | PlasticPlastic |
