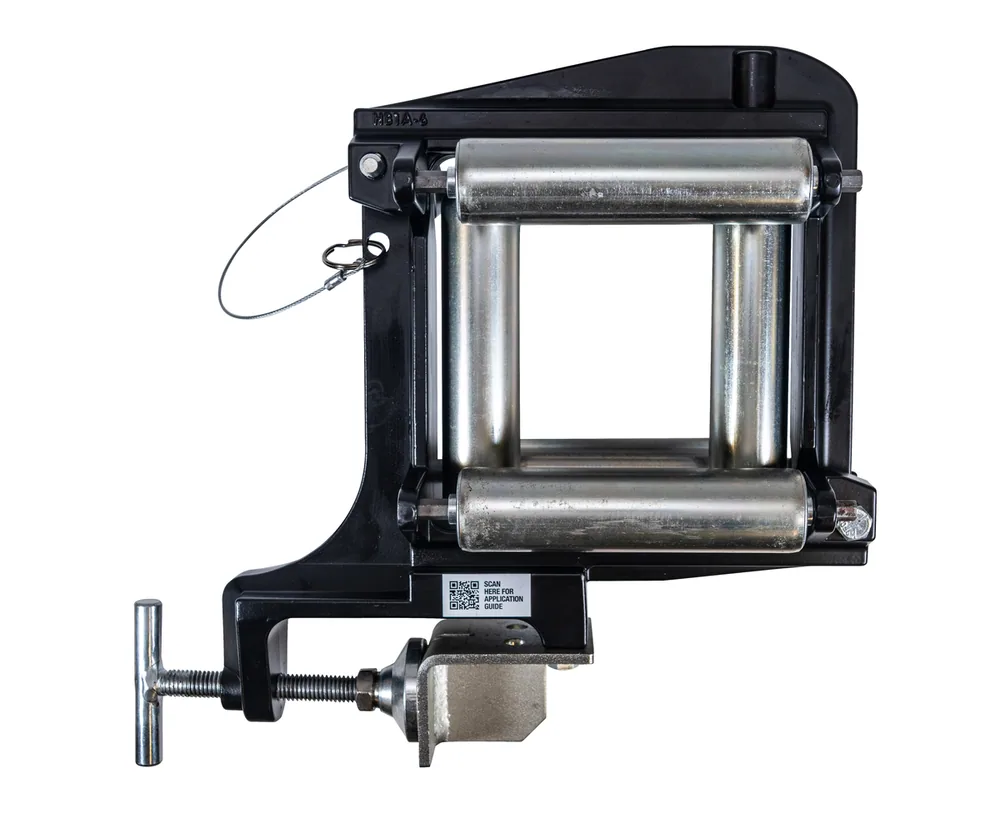

CABLE TRAY ROLLER, CLAMP-ON
- Southwire #
- 65094901
- Model #
- HB1A-6
- UPC
- 032886707957

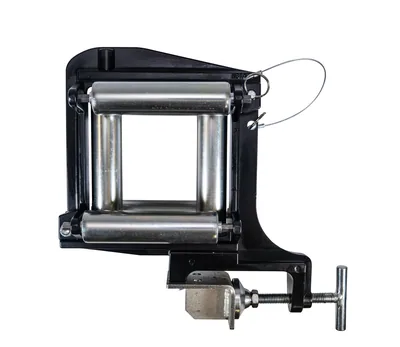

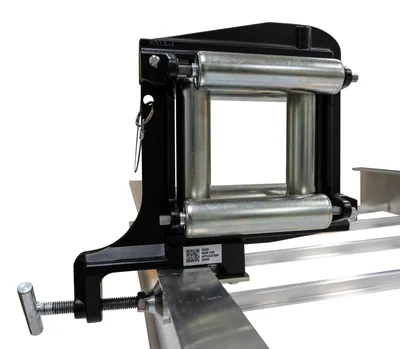

Southwire’s HB1A-6 Clamp-On Split Box Roller – Fast to Install, Built to Last. Speed through setup with the HB1A-6 Clamp-On Split Box Roller—engineered for rapid, tool-free installation and removal. With no fasteners and no loose parts, it clamps securely to the side of the tray in seconds. The split-box design opens wide for quick cable removal. Four integrated rollers keep wire fully captured for smooth, controlled pulls, while the rugged, one-piece die-cast aluminum frame delivers lasting strength and stability. When time is tight and performance matters, the HB1A-6 gets the job done—fast.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
- Easy-to-install clamp-on design. Fast installation. Great for straight cable runs. Installs on any depth cable tray.
- Premium construction. High-strength, one-piece die cast aluminum frame. Only from Southwire!
- 4-roller design keeps cables fully captured during the cable pull.
- Hinged-design opens wide, greater than 90°, for easy unloading of cables.
- Cable space between rollers is 3.25” x 4”. Weight: 9.8 lbs.

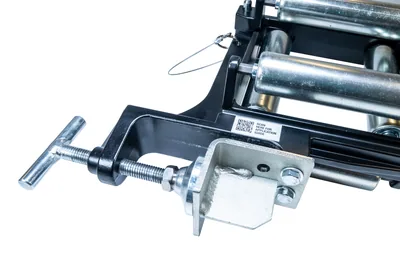

- “T”-handle with large diameter swivel base allows for secure clamping
Specifications
| Product Height | 12.35 inch31.37 cm |
|---|---|
| Product Width | 5.0 inch12.70 cm |
| Product Weight | 9.0 lbs4.08 kg |
| Rated Capacity | Up to 1,000 LBSUp to 1,000 LBS |
