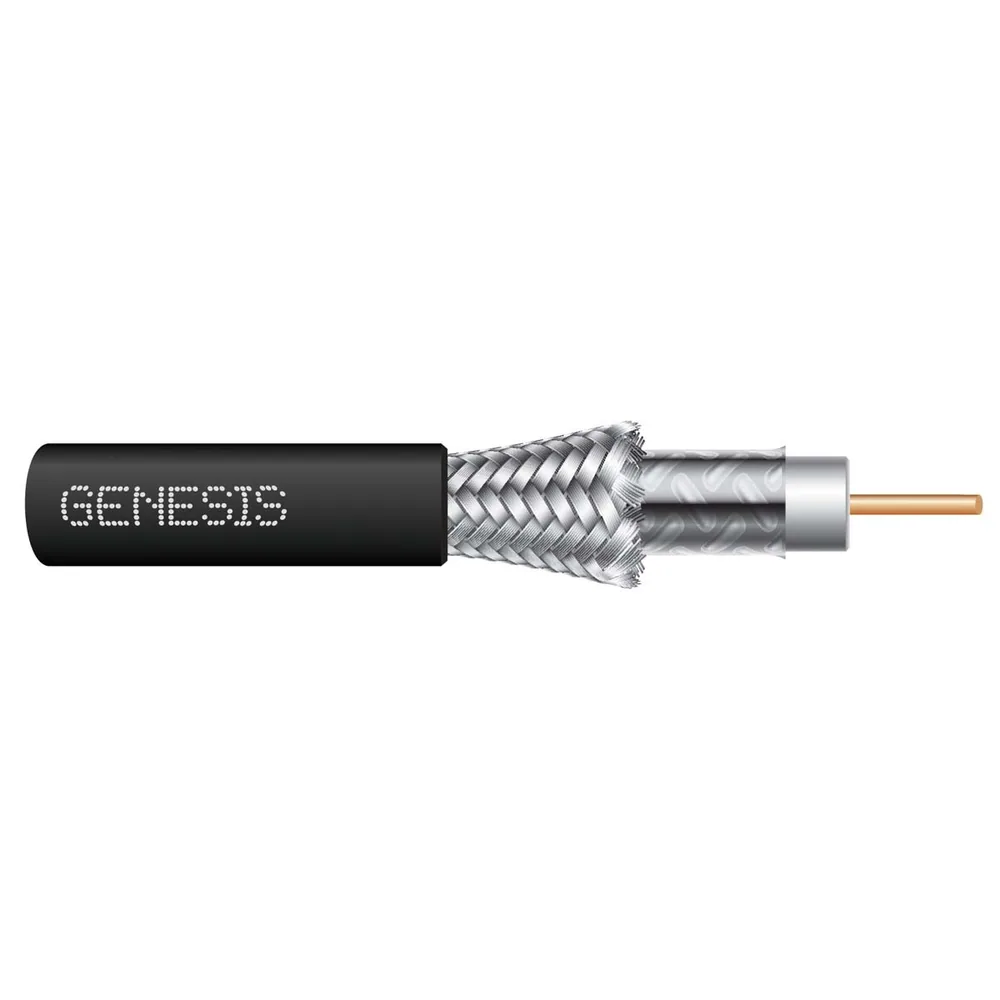

RG6/U 60%AL 3GHZ 1000PB BLK GEN
- Southwire #
- 53041108
Genesis® Broadband CATV Coaxial Cables deliver exceptional signal quality and protect from interference for satellite, cable, and broadcast TV applications.
Part of the family: Broadband CATV Coaxial Cable, General Purpose
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
Genesis® General Purpose Rated Broadband CATV Coaxial Cable is suitable for installation as follows:
- Installed in a metal raceway that complies with 300.22(B).
- Supported by solid bottom metal cable trays with solid metal covers.
- Within buildings in other than air-handling spaces and risers.
- Exposed to sunlight.
Specifications
| Style | RG6RG6 |
|---|---|
| Size | 18 AWG18 AWG |
| Material | BCBC |
| Shielding | DualDual |
| Nominal Total Weight | 30 lbs/1000'45 kgs/km |
Standards & references
- UL 1685 - General Purpose Rated
- UL 1655 - Community-Antenna Television Cables, Type CATV
- UL 444 - Communication Cables, Type CM
- UL 13 - Power-Limited Circuit Cables, Type CL2
- Sunlight Resistant Rated
- REACH/RoHS Compliant
