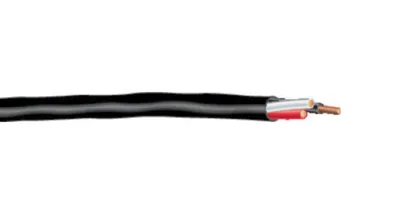

BRAKE CABLE

Southwire #: LW17

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Part numbers in this family (34) ↓

📄 Spec sheet (PDF)

Available sizes & constructions

Size (AWG or kcmil)(mm2)	No. of Strands	Nom. OD (mils)(mm)	Nominal Total Weight (lbs/1000')(kgs/km)
18 AWG18 AWG	1616		2842	FBK0661800
16 AWG16 AWG	1919		3551	55833225
14 AWG14 AWG	1919	3007.62	4669	55833001
14 AWG14 AWG	1919	42010.67	6698	FBK0562400
12 AWG12 AWG	1919		6393	FBK0030102
10 AWG10 AWG	1919		102152	FBK0980400

Part numbers in this family (34)

By size:

Southwire #	Description	Construction	Conductor Color	Packaging
18 AWG · 2 conductors (2)
FBK0661800	18-16 2/C CU BLACK/WHITE BRAKE CABLE BLACK 10000 FT	18 AWG 2C 16 STR	BLACK/WHITE	10000 FT REEL
FBK1080800	18-16 2/C TINNED CU RED/BLACK BRAKE CABLE BLACK 3000 FT	18 AWG 2C 16 STR	RED/BLACK	3000 FT REEL
16 AWG · 2 conductors (6)
55833225	16-19 2/C CU BLACK/WHITE BRAKE CABLE GRAY 2500 FT	16 AWG 2C 19 STR	BLACK/WHITE	2500 FT SPOOL
FBK0592400	16-19 2/C CU BROWN/WHITE BRAKE CABLE BLACK 15000 FT	16 AWG 2C 19 STR	BROWN/WHITE	15000 FT REEL
FBK1213200	16-19 2/C CU BROWN/WHITE BRAKE CABLE BLACK 30000 FT	16 AWG 2C 19 STR	BROWN/WHITE	30000 FT REEL
FBK0811800	16-19 2/C CU RED/BROWN BRAKE CABLE BLACK 10000 FT	16 AWG 2C 19 STR	RED/BROWN	10000 FT REEL
FBK1390808	16-19 2/C CU WHITE/BLACK BRAKE CABLE GRAY 3000 FT	16 AWG 2C 19 STR	WHITE/BLACK	3000 FT REEL
FBK0602400	16-19 2/C CU WHITE/WHITE-DARK GREEN BRAKE CABLE BLACK 15000 FT	16 AWG 2C 19 STR	WHITE/WHITE-DARK GREEN	15000 FT REEL
14 AWG · 2 conductors (14)
55833003	14-19 2/C CU BLACK/WHITE BRAKE CABLE GRAY 250 FT	14 AWG 2C 19 STR	BLACK/WHITE	250 FT SPOOL
55833001	14-19 2/C CU BLACK/WHITE BRAKE CABLE GRAY 10000 FT	14 AWG 2C 19 STR	BLACK/WHITE	10000 FT REEL
FBK0523016	14-19 2/C CU DARK GREEN/BLACK BRAKE CABLE DARK GREEN 25000 FT	14 AWG 2C 19 STR	DARK GREEN/BLACK	25000 FT REEL
FBK0503000	14-19 2/C CU RED/BLACK BRAKE CABLE BLACK 25000 FT	14 AWG 2C 19 STR	RED/BLACK	25000 FT REEL
FBK0060102	14-19 2/C CU WHITE/BLACK BRAKE CABLE RED 100 FT	14 AWG 2C 19 STR	WHITE/BLACK	100 FT REEL
FBK0060302	14-19 2/C CU WHITE/BLACK BRAKE CABLE RED 500 FT	14 AWG 2C 19 STR	WHITE/BLACK	500 FT REEL
FBK0060402	14-19 2/C CU WHITE/BLACK BRAKE CABLE RED 1000 FT	14 AWG 2C 19 STR	WHITE/BLACK	1000 FT REEL
FBK0060408	14-19 2/C CU WHITE/BLACK BRAKE CABLE GRAY 1000 FT	14 AWG 2C 19 STR	WHITE/BLACK	1000 FT REEL
FBK0370408	14-19 2/C CU WHITE/BLACK BRAKE CABLE GRAY 1000 FT	14 AWG 2C 19 STR	WHITE/BLACK	1000 FT REEL
FBK0060702	14-19 2/C CU WHITE/BLACK BRAKE CABLE RED 2500 FT	14 AWG 2C 19 STR	WHITE/BLACK	2500 FT REEL
FBK0060708	14-19 2/C CU WHITE/BLACK BRAKE CABLE GRAY 2500 FT	14 AWG 2C 19 STR	WHITE/BLACK	2500 FT REEL
FBK0370708	14-19 2/C CU WHITE/BLACK BRAKE CABLE GRAY 2500 FT	14 AWG 2C 19 STR	WHITE/BLACK	2500 FT REEL
FBK0471000	14-19 2/C CU WHITE/BLACK BRAKE CABLE BLACK 4000 FT	14 AWG 2C 19 STR	WHITE/BLACK	4000 FT REEL
FBK0483000	14-19 2/C CU WHITE/WHITE-DARK GREEN BRAKE CABLE BLACK 25000 FT	14 AWG 2C 19 STR	WHITE/WHITE-DARK GREEN	25000 FT REEL
14 AWG · 3 conductors (4)
FBK1260608	14-19 3/C CU WHITE/BLACK/DARK GREEN BRAKE CABLE GRAY 2000 FT	14 AWG 3C 19 STR	WHITE/BLACK/DARK GREEN	2000 FT REEL
FBK0752400	14-19 3/C CU WHITE/DARK GREEN-YELLOW/BROWN BRAKE CABLE BLACK 15000 FT	14 AWG 3C 19 STR	WHITE/DARK GREEN-YELLOW STRIPE/BROWN	15000 FT REEL
FBK0562400	14-19 3/C CU WHITE/RED/BLACK BRAKE CABLE BLACK 15000 FT	14 AWG 3C 19 STR	WHITE/RED/BLACK	15000 FT REEL
FBK0572400	14-19 3/C CU WHITE/RED/DARK BLUE BRAKE CABLE BLACK 15000 FT	14 AWG 3C 19 STR	WHITE/RED/DARK BLUE	15000 FT REEL
12 AWG · 2 conductors (7)
FBK0030102	12-19 2/C CU WHITE/BLACK BRAKE CABLE RED	12 AWG 2C 19 STR	WHITE/BLACK	100 FT REEL
FBK0030302	12-19 2/C CU WHITE/BLACK BRAKE CABLE RED 500 FT	12 AWG 2C 19 STR	WHITE/BLACK	500 FT REEL
FBK0030502	12-19 2/C CU WHITE/BLACK BRAKE CABLE RED 1500 FT	12 AWG 2C 19 STR	WHITE/BLACK	1500 FT REEL
FBK0190502	12-19 2/C CU WHITE/BLACK BRAKE CABLE RED 1500 FT	12 AWG 2C 19 STR	WHITE/BLACK	1500 FT REEL
FBK0190700	12-19 2/C CU WHITE/BLACK BRAKE CABLE BLACK	12 AWG 2C 19 STR	WHITE/BLACK	2500 FT REEL
FBK0190702	12-19 2/C CU WHITE/BLACK BRAKE CABLE RED 2500 FT	12 AWG 2C 19 STR	WHITE/BLACK	2500 FT REEL
FBK0220508	12-19 2/C CU WHITE/LIGHT BLUE BRAKE CABLE GRAY 1500 FT	12 AWG 2C 19 STR	WHITE/LIGHT BLUE	1500 FT REEL
10 AWG · 2 conductors (1)
FBK0980400	10-19 2/C CU WHITE/LIGHT BLUE BRAKE CABLE BLACK 1000 FT	10 AWG 2C 19 STR	WHITE/LIGHT BLUE	1000 FT REEL
