DistributorSouthwire

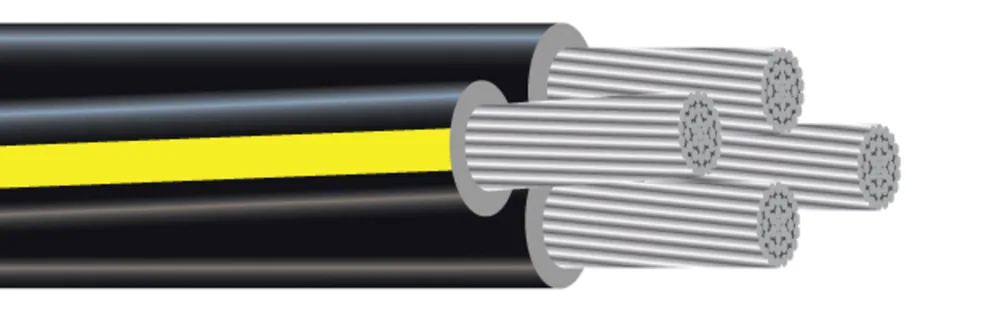

AL 600V-UD HISCORE QUADRUPLEX

Southwire

AL 600V-UD HISCORE QUADRUPLEX

Southwire #
AL600V88

Aluminum Conductors. Ruggedized XLP Insulation. Provides Superior Mechanical Protection.

Priced by quote — copper moves daily (COMEX), so we quote at the current price.

Part numbers in this family (7) ↓
📄 Spec sheet (PDF)📎 Al 600v UD Hi Score EPD

Available sizes & constructions

No. of ConductorsSize (AWG or kcmil)(mm2)No. of StrandsNom. OD (mils)(mm)Nominal Total Weight (lbs/1000')(kgs/km)
443/0 AWG3/0 AWG1717145536.977981187 30863501
444/0 AWG4/0 AWG1818158840.359731449 30865001
44350 KCMIL350 KCMIL3030200650.9515472302 30867601
44500 KCMIL500 KCMIL3737229358.2521803244 31079701

Part numbers in this family (7)

By size:
Southwire #DescriptionConstructionPackaging
3/0 AWG (1)
308635013/0 AL 600VUD QX SWARTHMORE/HISCORE/YS/USE-2 1000 FT3/0 AWG 4C 17S1000 FT REEL
4/0 AWG (1)
308650014/0 AL 600VUD QX WAKE FOREST/HISCORE/YS/USE-2 1000 FT4/0 AWG 4C 18S1000 FT REEL
350 kcmil (3)
30867601350 AL 600VUD QX SLIPPERY ROCK/HISCORE/YS/USE-2 1000 FT350 KCMIL 4C 30S1000 FT REEL
30867603350 AL 600VUD QX SLIPPERY ROCK/HISCORE/YS/USE-2 500 FT350 KCMIL 4C 30S500 FT REEL
31077101350 AL 600VUD QX/REDUCED-WALL SLIPPERY ROCK/HISCORE/YS/USE-2 1000 FT350 KCMIL 4C 30S1000 FT REEL
500 kcmil (2)
65094501500 AL 600VUD QX MARSHALL/HISCORE/YS/USE-2 1000 FT500 KCMIL 4C 37S1000 FT REEL
31079701500 AL 600VUD QX WOFFORD/HISCORE/YS/USE-2 1000 FT500 KCMIL 4C 37S1000 FT REEL

Application & features

Used for secondary distribution and underground service at 600 volts or less, either direct burial or in ducts. Especially suited for applications requiring superior resistance to mechanical damage. Rated 90°C continuous operation, 130°C emergency overload and short circuit 250°C.

Standards & references

  • B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.
  • B-231 Aluminum 1350 Conductors, Concentric-Lay-Stranded.
