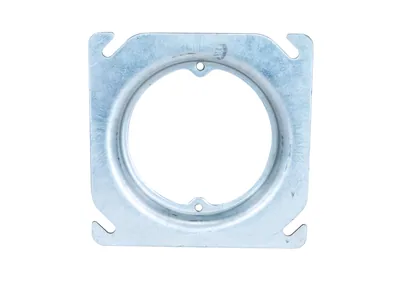

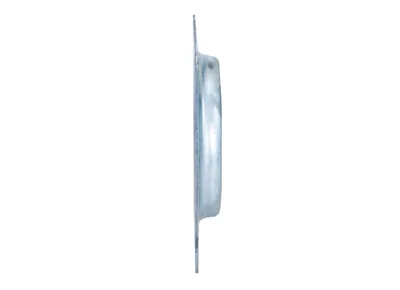

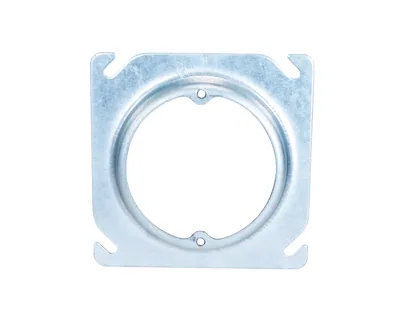

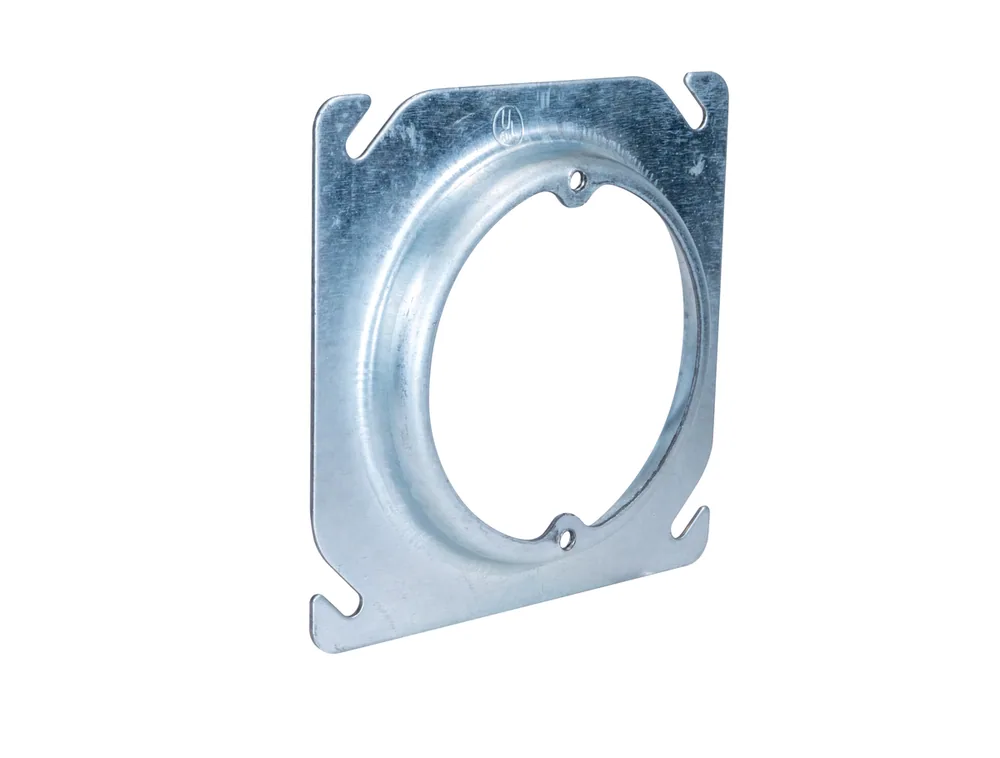

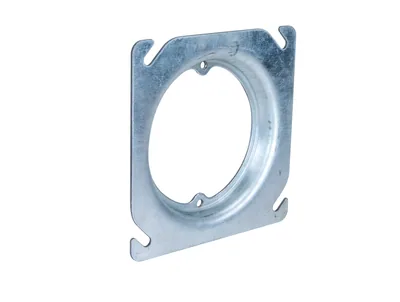

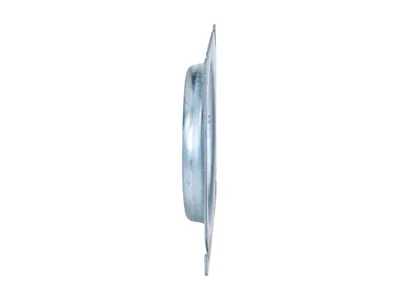

4" Square To 2-3/4" Round Fixture Ring - Raised 1/2"
4" Square To 2-3/4" Round Fixture Ring - Raised 1/2"
- Southwire #
- 52C3
- UPC
- 785592523310
4" square to round raised device rings are used to mount light fixtures in walls and ceilings. Rings convert a 4" square box to a 3-1/2" round opening with 8-32 threaded mounting tabs for lighting retrofit applications.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
- Angled slots on the covers compensate for up to 12 degrees of box misalignment on upright framing members
- Not rated for ceiling fan support, static fixture load only
- Fixture Ears 2-3/4" O.C.
- UL, CUL, RoHS Compliant
Specifications
| Product Height | 0.5 inch1.27 cm |
|---|---|
| Product Width | 4.0 inch10.16 cm |
| Product Weight | 0.38 lbs0.17 kg |
| Material | Galvanized SteelGalvanized Steel |
| Cubic Capacity | 3.3 (54.1)3.3 (54.1) |
| Standard Package | 2525 |
| Color | SilverSilver |
