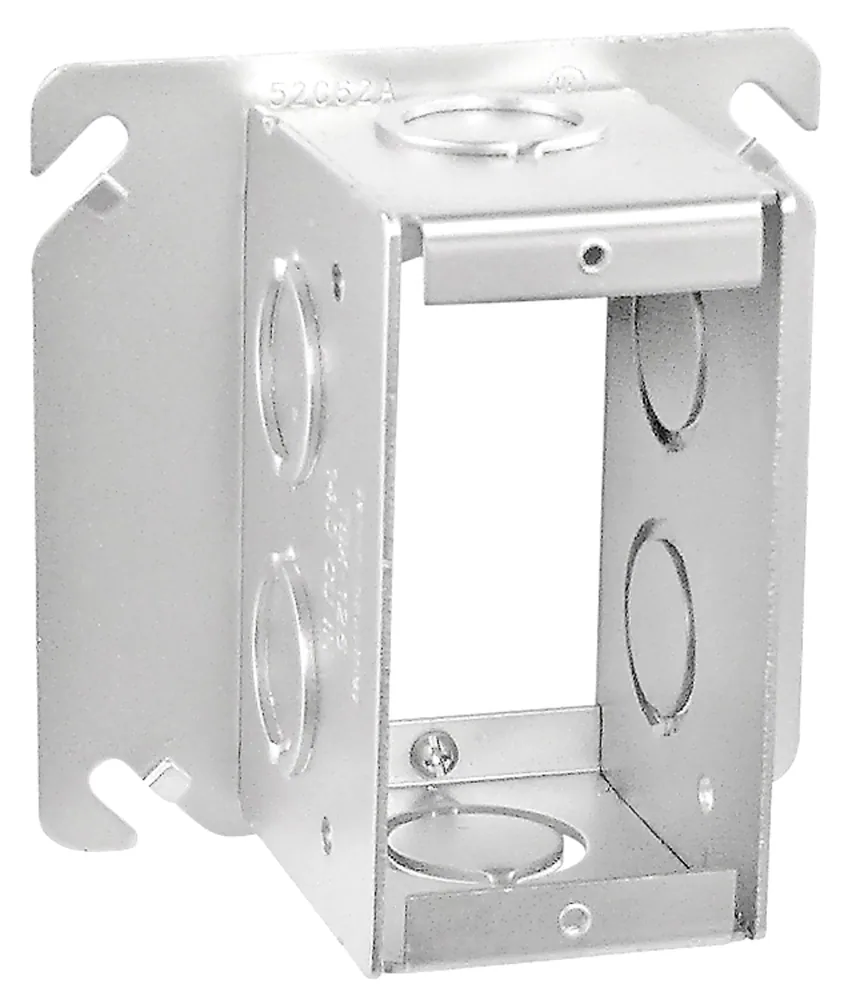

4" SQ DEV RNG 1 G DRY/TILE 3-1/2" RAISED
4" SQ DEV RNG 1 G DRY/TILE 3-1/2" RAISED
- Southwire #
- 52C28
- UPC
- 785592122056

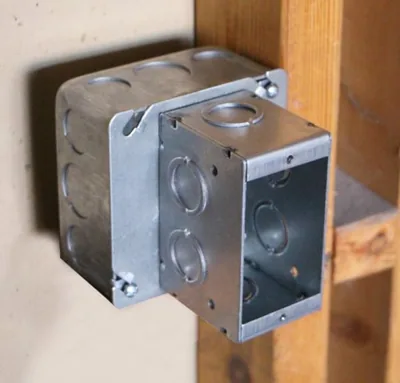

4" square single device rings are used with 4" square boxes to mount switches, receptacles and devices.
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
- 90 degree, welded corners
- Angled slots on the covers compensate for up to 12 degrees of box misalignment on upright framing members
Specifications
| Product Height | 2.0 inch5.08 cm |
|---|---|
| Product Width | 4.0 inch10.16 cm |
| Product Weight | 0.95 lbs0.43 kg |
| Material | Galvanized SteelGalvanized Steel |
| Cubic Capacity | 22.5 (368.7)22.5 (368.7) |
| Standard Package | 2525 |
| Bottom Knockouts | (2) 3/4", (3) 1/2"(2) 3/4", (3) 1/2" |
| Color | SilverSilver |
