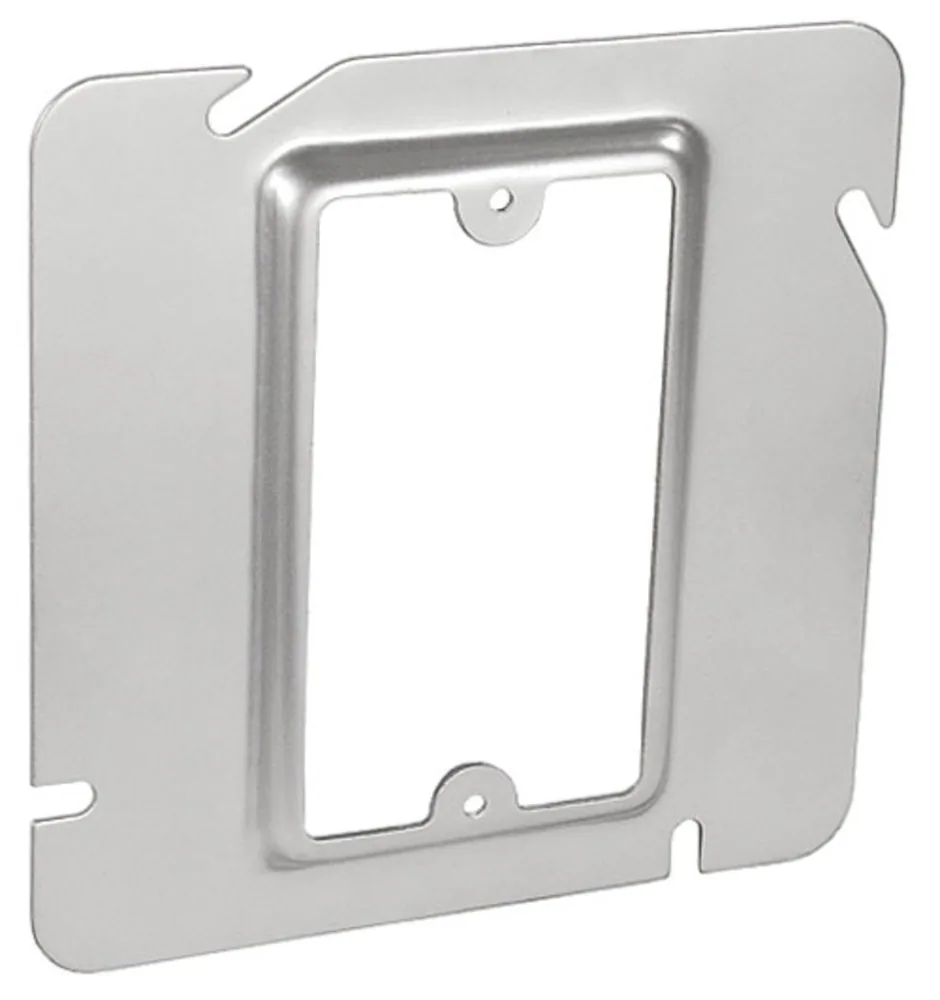

4-11/16" Square One Gang Device Ring - 1/4" Raised
4-11/16" Square One Gang Device Ring - 1/4" Raised
- Southwire #
- 72C62
- UPC
- 785592722317
4-11/16 DEV RNG 1G 1/4IN
Priced by quote — copper moves daily (COMEX), so we quote at the current price.
Application & features
- Angled slots on the covers compensate for up to 12 degrees of box mis-alignment on upright framing members
- Tapped 6-32 device mounting tabs
- UL, RoHS Compliant
Specifications
| Product Height | 0.25 inch0.64 cm |
|---|---|
| Product Width | 4.75 inch12.07 cm |
| Product Weight | 0.31 lbs0.14 kg |
| Material | Galvanized SteelGalvanized Steel |
| Cubic Capacity | 1.5 (24.6)1.5 (24.6) |
| Standard Package | 2020 |
| Bottom Knockouts | (4) 1/2", (3) 3/4"(4) 1/2", (3) 3/4" |
| Color | SilverSilver |
